Is Optical Fibers for 5G Networks For You?
Optical fibers have become one of the key points in the 5G competition. It’s known that 5G networks will provide consumers with high-speed and low-latency services with more reliable and stronger connections. But to make this happen, more 5G base stations have to be built due to the higher 5G frequency band and limited network coverage. And it’s estimated that by 2025, the total number of global 5G base stations will reach 6.5 million, which puts forward higher requirements for optical fiber cable performance and production.
Currently, there is still some uncertainty in 5G network architectures and the selection of technical solutions. However, the 5G fiber cables should meet both current application and future development needs in the basic physical layer. The following are five types of optical fiber cables that address issues in 5G networks built to some degree.
Bend Insensitive Optical Fiber for Easy 5G Indoor Micro Base Stations
The dense fiber connections between massive 5G new macro base stations and indoor micro base stations are the major challenge in the 5G access network constructions. The complex cabling environments, especially the indoor fiber cabling, and the limited space and bend request high requirements for the fiber bend performance. Optical fiber compliant ITU G.657.A2/B2/B3 has great bend-improved performance, which can be stapled and bent around corners without sacrificing performance.
Many fiber manufacturers have announced bend-insensitive fiber (BIF) cables with low loss in 5G indoor applications to address such issues.
| Company | Product Name | ITU Standards | Bend Radius (1 turn around a mandrel) |
Induced Attenuation(dB) |
| Corning | ClearCurve LBL fiber | G.652.D, G.657.A2/B2 | 7.5 mm | ≤ 0.4 |
| YOFC | EasyBand Ultra BIF | G.652.D, G.657.B3 | 5 mm | ≤ 0.15 |
| Prysmian Group | BendBright XS fiber | G.652.D, G.657.A2/B2 | 7.5 mm | ≤ 0.5 |
Note: The induced attenuation is caused due to fiber wrap around a mandrel of a specific radius.
OM5 Multimode Fiber Applied to 5G Core Networks
5G service providers also have to focus on the fiber optic network build of the data centers where the content is stored. At present, the transmission speed of data centers is developing from 10G/25G, 40G/I00G to 25G/I00G, 200G/400G, which put forward new requirements for the multimode optical fibers used for interconnection inside the data centers.
Multimode optical fibers need to be compatible with the existing Ethernet standard, cover future upgrades to higher speeds like 400G and 800G, support multi-wavelength multiplexing technologies like SWDM and BiDi, and also need to provide excellent bending resistance to adjust to dense data centers cabling scenarios.

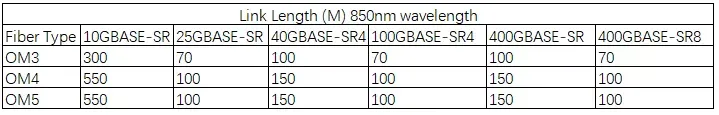

Under these conditions, the new broadband OM5 multimode fiber becomes the hotspot option for data center constructions.OM5 fiber allows multiple wavelengths to be transmitted simultaneously in the vicinity of 850 to 950 nm. By adopting the PAM4 modulation and WDM technology, OM5 optical fiber can support 150 meters in 100Gb/s, 200Gb/s, and 400Gb/s transmission systems, and ensure the ability of future generations' short-distance and high-speed transmission networks, making it the optimum choice for intra-data center connections under the 5G environment.
Micron Diameter Optical Fibers Enable Higher Fiber Density
Due to the complex deployment environments of the access layer or aggregation layer of 5G bearer networks, it’s easy to experience problems like the limited existing cable pipeline resources.
To ensure the limited space can hold more optical fibers, cable manufacturers are working hard to decrease the size and diameter of cable bundles.
For example, recently the Prysmian Group has introduced the BendBright XS 180µm single-mode fiber to meet the 5G technology demands.
This innovative optical fiber enables cable designers to offer strongly reduced cable dimensions while still keeping the 125µm glass diameter.

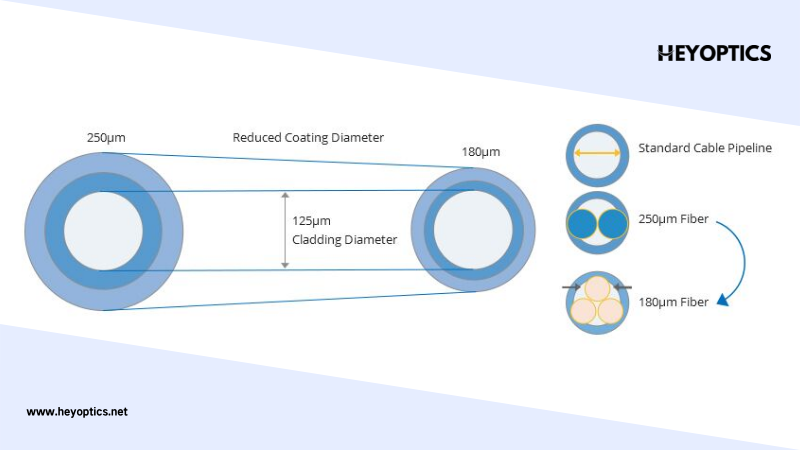

Figure: Prysmian’s BendBright XS 180µm fiber
Similarly, with the same principles, Corning has introduced the SMF-28 Ultra 200 fiber that allows fiber cable manufacturers to shave 45 microns off previous cable coating thicknesses, going from 245 microns down to 200 microns, to achieve a smaller overall outer diameter. And YOFC, another optical fiber manufacturer, also provides EasyBand plus-Mini 200μm reduced diameter bending insensitive fiber for 5G networks, which can reduce the cable diameter by 50% and significantly increase the fiber density in pipelines when compared with common optical fibers.
ULL Fiber with Large Effective Area Can Extend 5G Link Length
| Speed (bps) | 40G | 100G | 400G | 400G |
| Fiber Type | common G.652 | low-loss G.652 | low-loss G.652 | innovative G.654.E |
| Maximum Capacity (Tbs) | 3.2 | 8 | 20 | 20 |
| Limit Relay Distance (km) | 6000 | 3200 | <800 | <2000 |
| Typical Link Attenuation (dB/km) | 0.21 | 0.2 | 0.2 | 0.18 |
| Fiber Effective Area ((µm²)) | 80 | 80 | 80 | 130 |
With the continuous increase of the transmission speed and capacity of the 5G core network and the clouded data center, fiber optic cables like this will be needed more. It’s said that the latest Corning’s TXF fiber, a type of G.654.E fiber, comes with high-data-rate capabilities and exceptional reach, capable to help network operators deal with growing bandwidth demands while lowering their overall network costs.
Recently, Infinera and Corning have achieved 800G across 800km using this TXF fiber, which shows this fiber is expected to offer excellent long-haul transmission solutions for 5G network deployment.
5G network deployment includes both indoor and outdoor scenarios, the installation speed is a factor needed to consider. Full-dry optical cable using a dry water-blocking technique can improve fiber splicing speed during cable installation. Air-blown micro cables are compact and lightweight and contain high fiber density to maximize the fiber count.
This type of cable is easy to be installed in longer ducts with multiple bends and undulations, and it can save manpower & installation time and improve installation efficiency through the blowing installation methods.
For the outdoor fiber cable deployment, some anti-rodent and anti-bird optical cables also need to be used.
Get Ready for 5G Networks
Currently, optical fiber is the optimal medium capable of scaling to the 5G demands. 5G networks' enhanced bandwidth capacity, lower latency requirements, and complicated outdoor deployments bring challenges as well as unlimited possibilities for optical fiber manufacturers, but our optical networks must quickly adapt to meet such new demands. If you want to know more about the 5G network, please contact sales@heyoptics.ca.
