300m 8K PureOptical Fiber HDMI2.1 Cable MPO-Adopt MPO connector
As we all know, HDMI is one of the most popular A/V interfaces because it is perfect for transmitting the highest quality audio and video. Compared with the all-in-one optical fiber HDMI cables that can be seen everywhere on the market, the Heyoptics 2.1 version of the pure optical fiber HDMI cable can be said to be eye-catching. From the appearance, we can easily find its unique charm: the use of MPO connectors common in the field of optical communication, thinner cables, and split components. 300meters of ultra-long transmission main line and other signs indicate that it is not a conventional cable product.
It is true that as the "crown-level" technology in the field of fiber optical cables. The pure optical fiber HDMI cable version 2.1 uses MPO connectors and pure optical fiber cables as the transmission carrier. Greatly solved many technical difficulties:
- Electromagnetic interference radiation
- Long distance signal transmission
- Fast wiring, does not take up space
- Upgradable in the future
- Installation regardless of the direction
As a top 8K optical HDMI cable in the industry, it has many advantages. Today, let's take a look at the extraordinary MPO connector.
Structure of 8K PureOptical Fiber HDMI2.1 Cable MPO connector
The MPO (multifiber push-on) optical fiber connector used in the pure optical fiber HDMI cable version 2.1 is a multi-core multi-channel pluggable connector, which is one of the MPO optical fiber connectors of the IEC standard (IEC 61754-7). kind of structure. MPO connectors are divided into male and female connectors, which are composed of a pair of MT sleeves, two guide pins, two shells and an adapter.

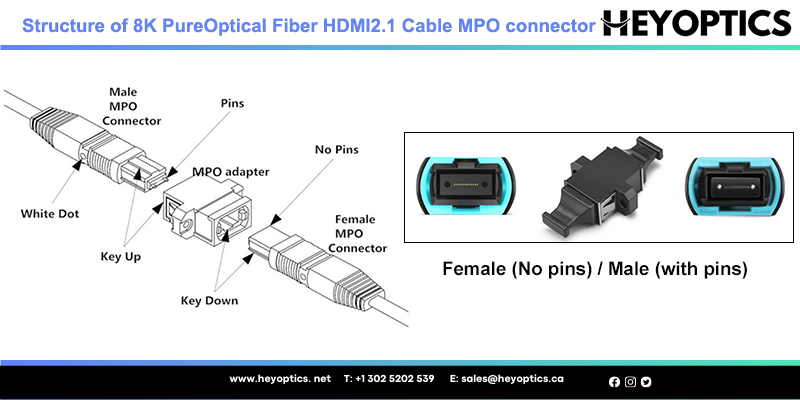

MPO connectors are available as female (without pins) or male (with pins) as shown below. The location of the guide slots also results in "Key Up" and "Key Down" MPO connectors. The white dots are used to identify the fiber position in the connector. When mating the connector, a spring mounted on the end of the ferrule provides a push on the ferrule, locking it into place with the adapter. The guide pins of the ferrule limit the relative position between the connectors to ensure that the optical fibers are connected in the correct order.
Advantages of pure optical HDMI 2.1 cable version MPO connector
It is the advantages of the MPO connector that are small in size, simple in assembly, and detachable. It has achieved the unshakable top position of the pure fiber HDMI cable 2.1 MPO version in the field of AOC cables.
- MPO connectors greatly increase the cable density. Save cables and wiring space, and are very suitable for wiring in home and engineering scenarios.
- MPO connector is used with optical fiber cable. It makes it possible to upgrade the pure optical fiber HDMI cable version 2.1 without changing cables in the future. It greatly reduces the cost of installation, wiring and transformation.
- Compared with other fiber optic connectors, MPO connectors have the characteristics of small size, high precision and high density.
- The emergence of MPO version 2.1 of pure optical fiber HDMI cable has greatly improved the popularity of optical networks.
- Reduced production costs. Its appearance has greatly improved the popularity of optical networks and reduced production costs.
- Widely used in optical fiber communication networks (AOC+, QSFP, etc.), transmission systems and CATV networks.
Conclusion
The above is the introduction of pure optical HDMI cable version 2.1 MPO. Heyoptics has many products using MPO connectors. At present, it has developed pure optical fiber HDMI cable, pure optical fiber DP cable, pure optical fiber DVI cable, pure optical fiber USB cable and corresponding armored pure optical fiber cable products. Heyoptics is committed to the development and transformation of international leading audio and video decoding and transmission solutions, and promotes the industrialization and commercialization of various top audio and video technologies.
