XGS-PON 10G/10G ONU SFP+ N2 Optical Transceiver Module
XGS-PON 10G/10G ONU SFP+ N2 Optical Transceiver Module

XGS-PON 10G/10G ONU SFP+ N2 Optical Transceiver Module

P/N:XGS-PON-ONU-N2
$2800
$000
Free Worldwide shipping on orders $159
Worry-Free 30 Day Returns ( Return shipping cost on us)
5-Year warranty (Exchange New) & Lifetime warranty (Repair)
Free Trial & Bulk Price Available
Compatibility
MSA STANDARD
HUAWEI
ALCATEL-LUCENT
NOKIA
PLANET
Label
with Heyoptics
NO Logo
Customized Logo
Quantity
Only 10000 left

Late Shipping till 8pm.Factory Sealed. 5-YEAR WARRANTY

Lifetime warranty for repair. 30-Day Money-back Guarantee.

Best Price Guarantee

The XGS-PON ONU Transceiver is designed for 10G XGS-PON transmission. The module incorporates 10Gb/s 1577nm burst-mode transmitter and 10Gb/s 1270nm continuous-mode receiver. An integrated WDM coupler can separate 1270nm input light and 1577nm output light. The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.

Features:
Integrated Single fiber bi-directional optical subassembly
Symmetric 9.953Gb/s upstream and downstream bit rate
SFP+ metallic package SC connector
+3.3V single power supply
Low power consumption
0 to 70 C operating case temperature
Class 1 Laser eye safety
Excellent EMI and EMC characteristics
Compliant with RoHS&WEEE

Applications
symmetric 10-Gigabit capable
passive optical network
(XGS-PON) system
Ordering Information
Standards
SFF 8432
SFF 8472
ITU-T G.9807.1

SPECIFICATION

Package Interface Reach Temp Sensitivity Optical Power Tx Rate Tx Wavelength Ratio Rx Rate Rx Wavelength
SFP+ SC 20km C,H -29.5 dBm 4 dBm7dBm 9.953 Gbit/s 1270nm 8.2dBm 9.953/2.488Gb/s 1577nm

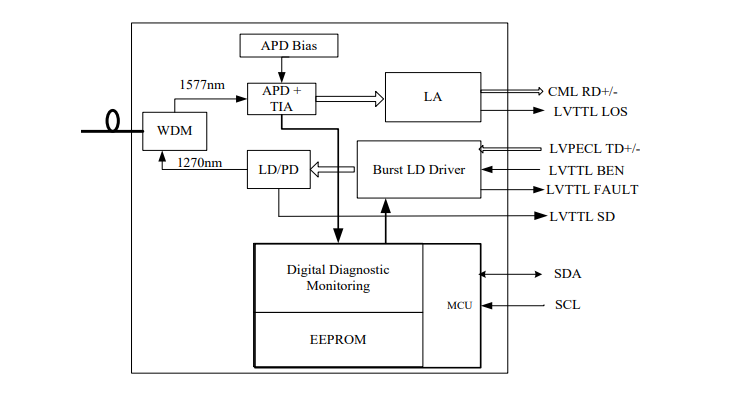

Principle diagram
