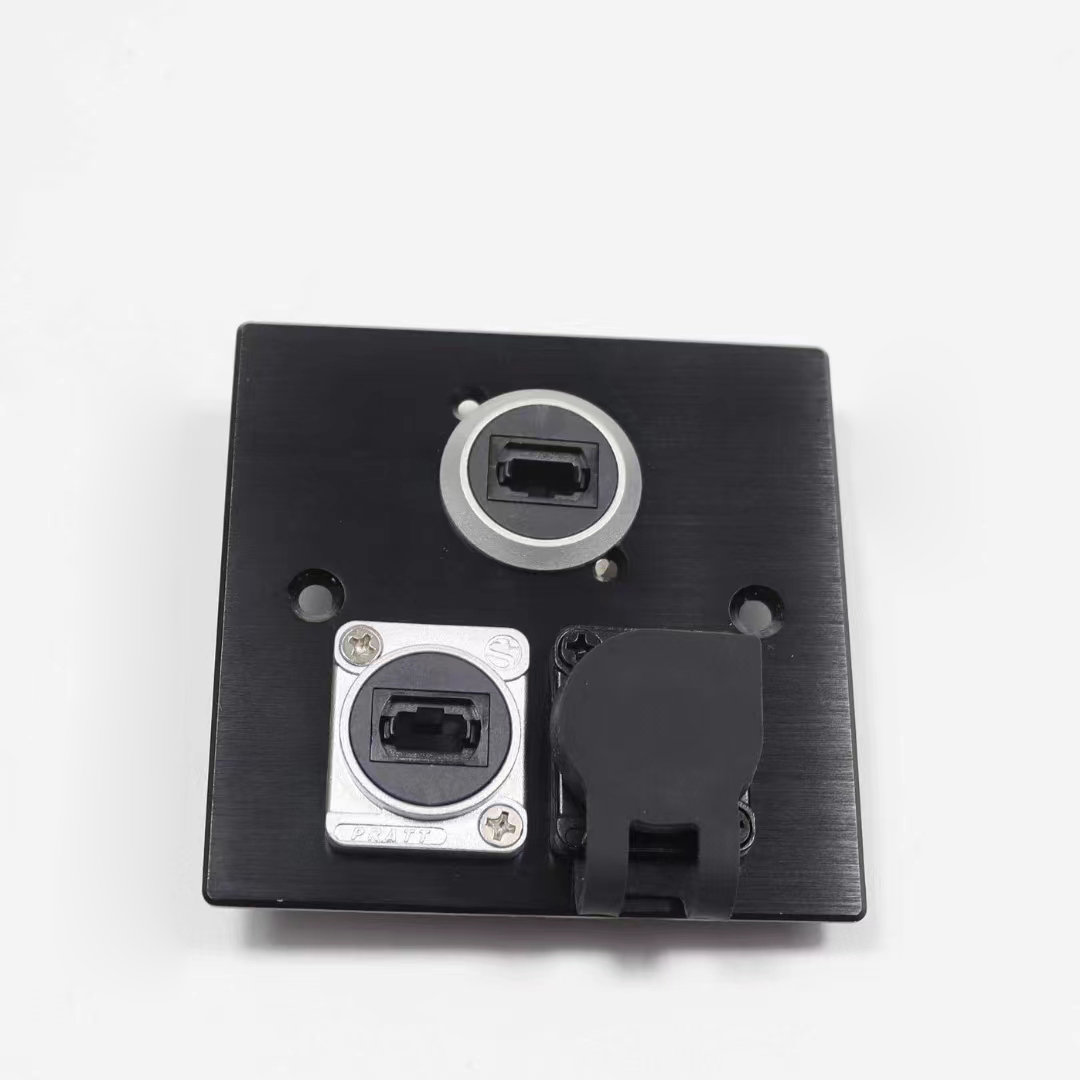

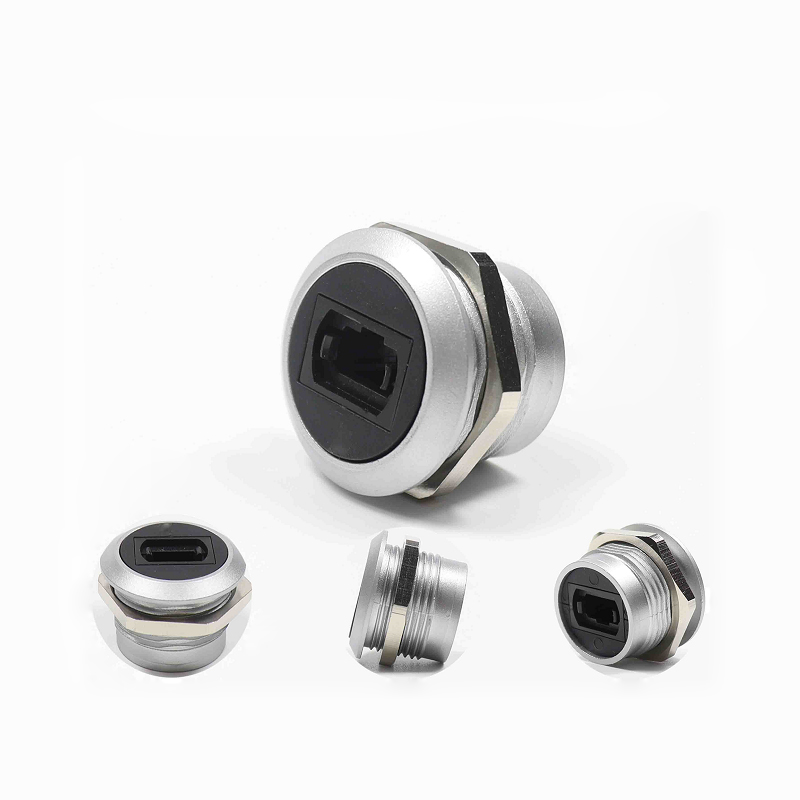

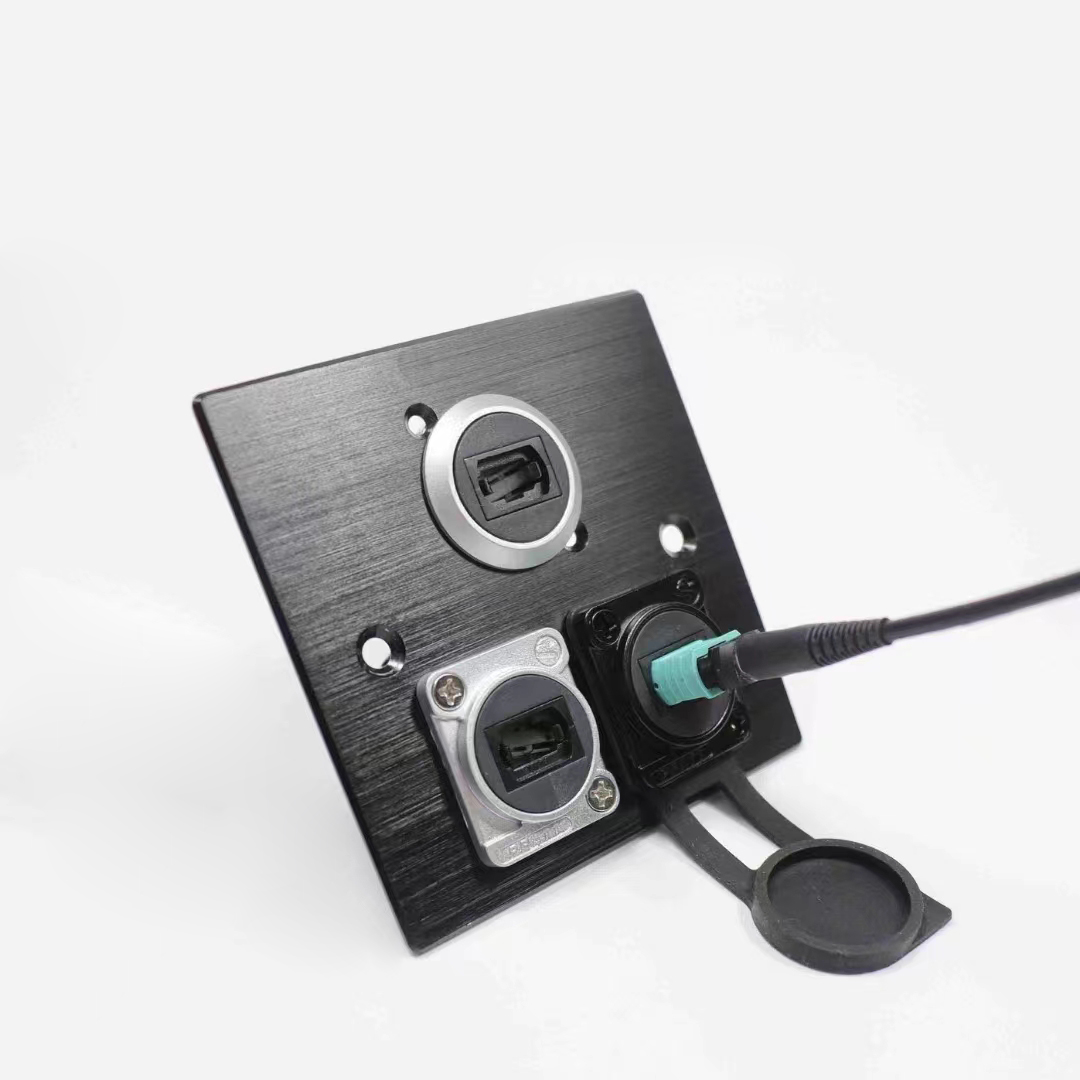

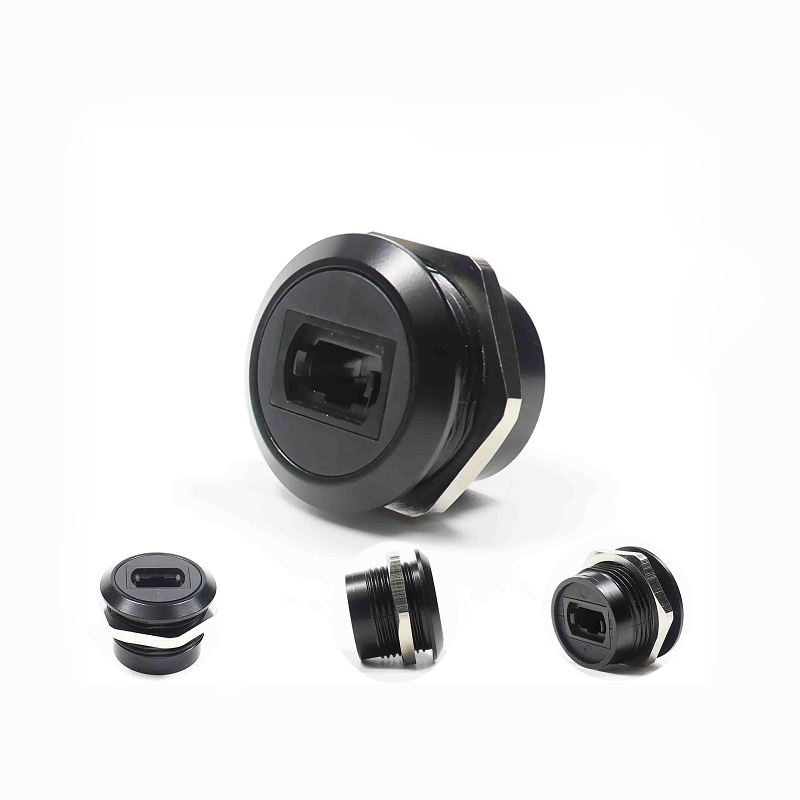

This IP XLR fibre optic ‘feed-through’ MPO bulkhead fiber adapter can be used in standard Neutrik ‘D-Series’ (XLR cut-out holes). Suitable for use on panels, connector plates, stageboxes, wall boxes and any application where a XLR ‘D-series’ housing cut out is available. Made with high-tolerance housings and quality components, which ensures lower loss and greater reliability than commercial grade types. Suitable for both multimode and singlemode fibre optic cables.

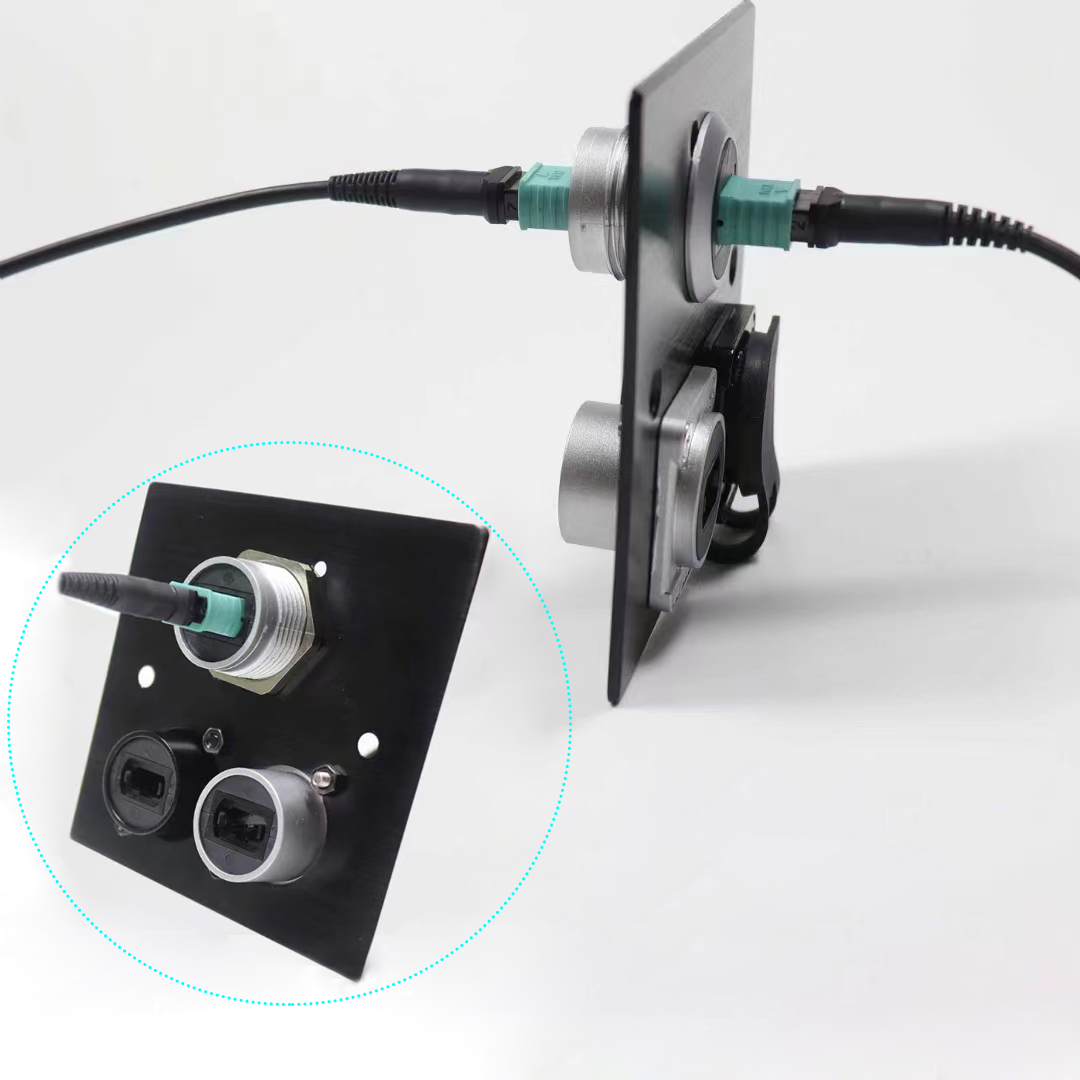

Can be used to couple standard MPO/MTP cables or IP-PRO12/24 IP Rated Plugs to MPO/MTP cables. Key-up to key-down orientation maintains the continuation of the cables’ polarity.
They fit perfectly in D sized 24 mm panel cutouts making installation a breeze. The robust nickel body and silver plated brass contacts deliver long lasting performance and high quality, secure electrical transfer.
Features:
- Opposed MPO Bulkhead
- Neutrik D-Series / XLR format
- Optional IP rated Cap
- Use with standard or IP-rated MPO plug
- Suitable for multimode and singlemode fibre
