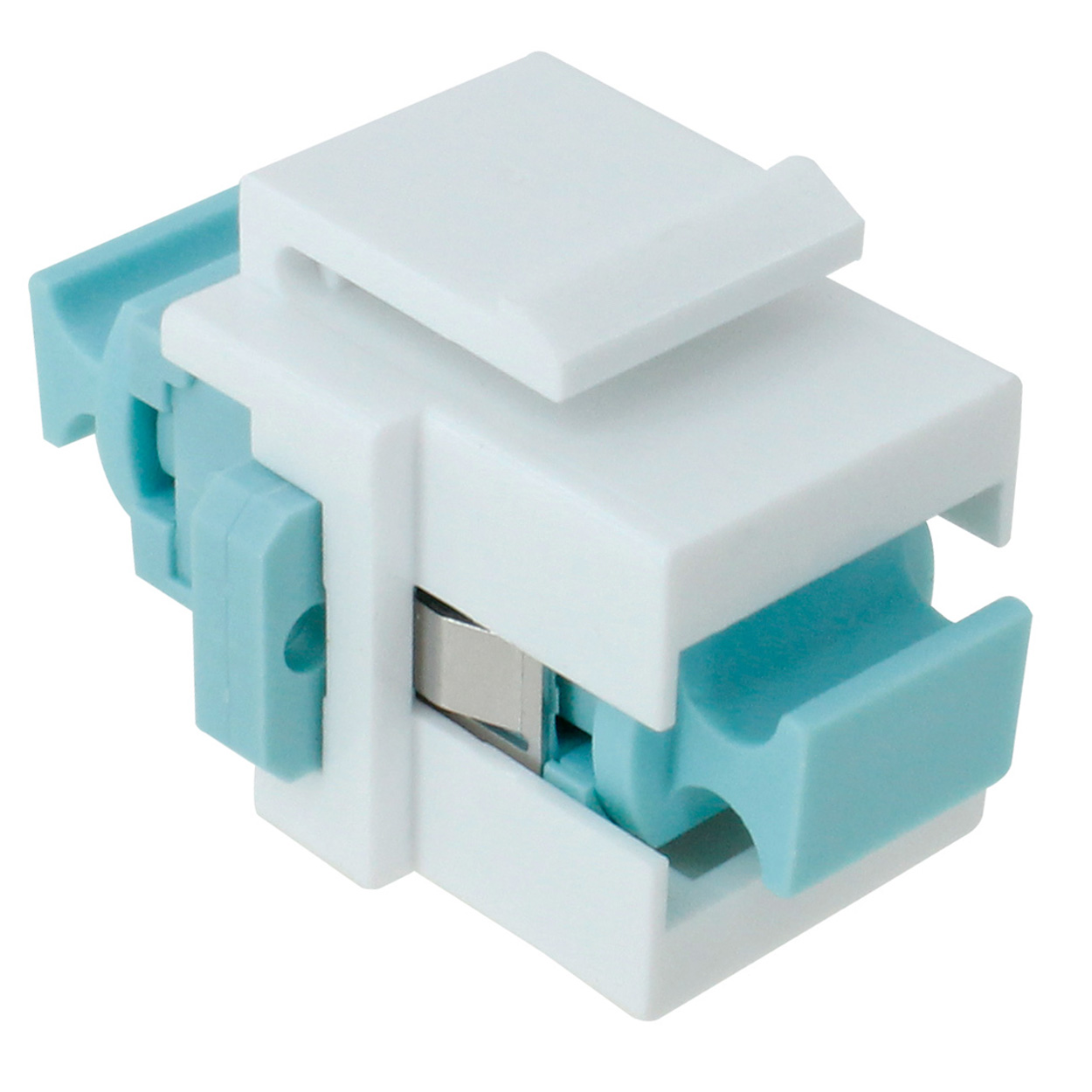

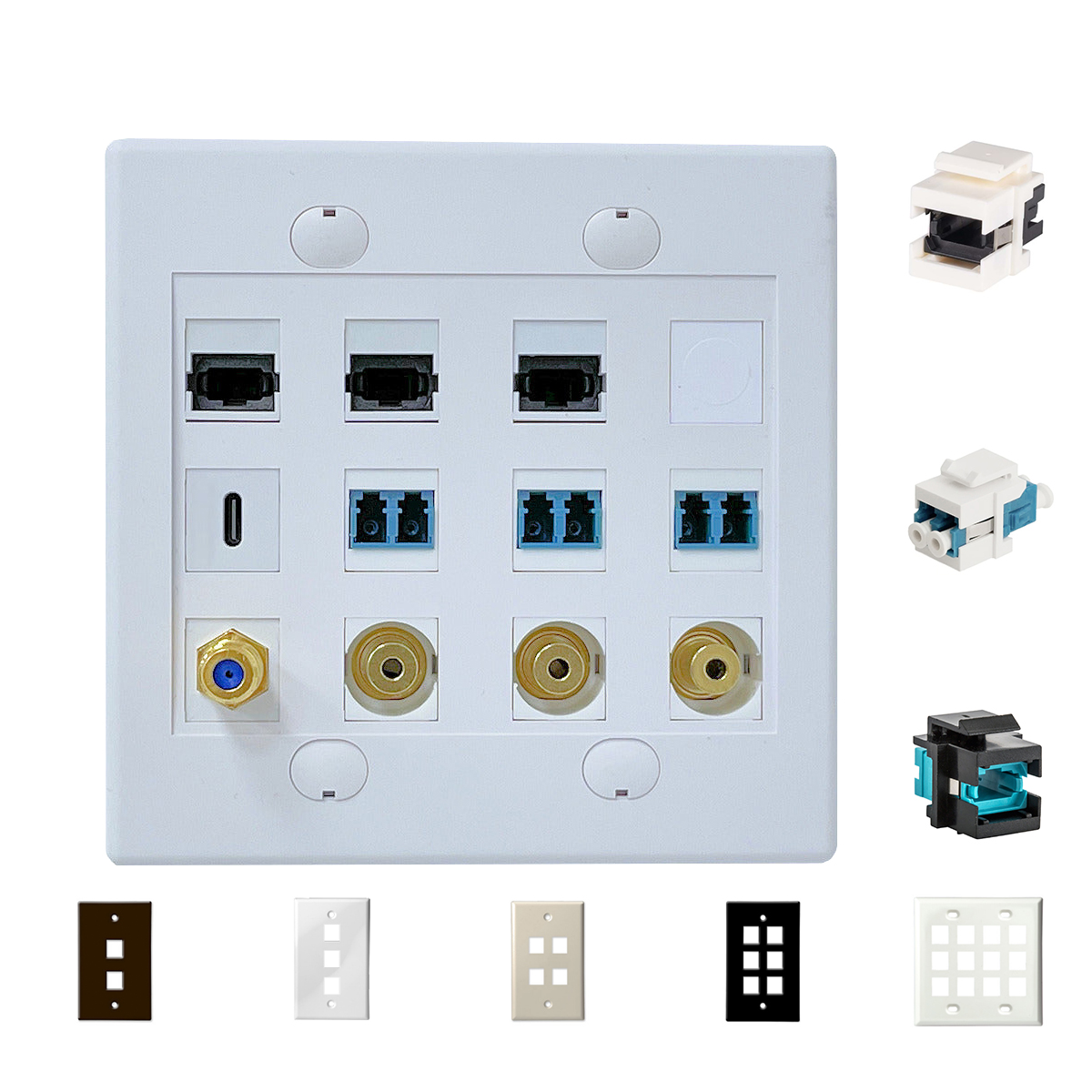

This MTP MPO keystone Jack/insert is modular designed, with a standard footprint, fits most blank ethernet patch panels, wall faceplates, and offers an expandable solution for FTTx, widely used in existing voice, video, data transmission systems.
Adapter MPO MTP, 10GB OM3, Aqua, Keystone Footprint

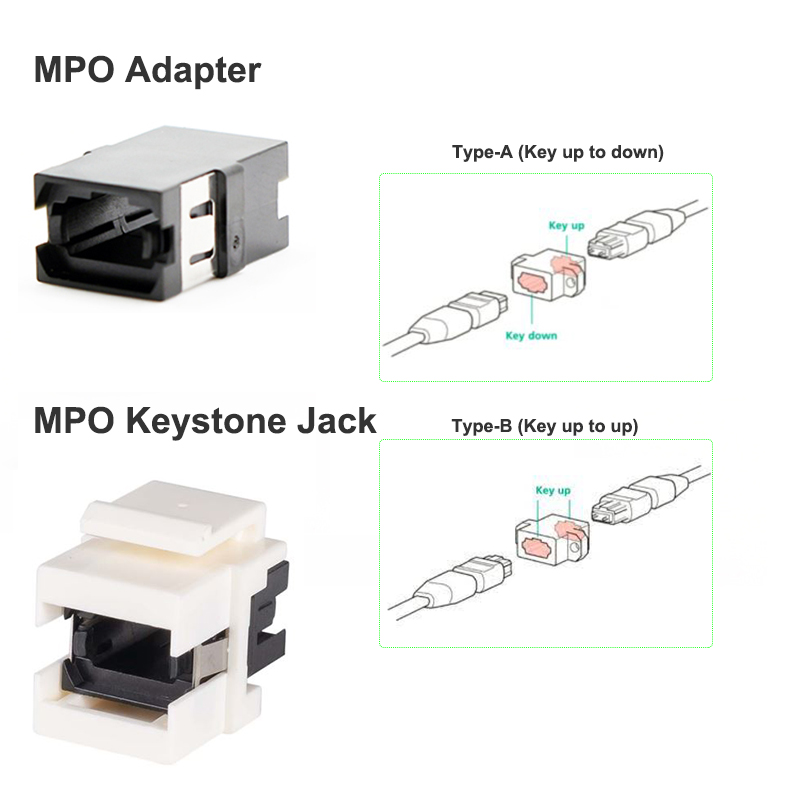

These are aqua color adapters for connecting two MPO or MTP cables (up to 12 fiber). They fit in a standard keystone panel cutout. The aqua color usually indicates multimode 50/125 OM3 fiber.
NOTE: The MTP connector is one brand of MPO connector, which owned and made by US Conec. The MTP connector is in complete compliance with all MPO connectors and is 100% inter-mateable.
Specifications
Connectors- MTP/MPO 12-position to MTP/MPO 12-position
Body material- Polymer
Mounting- Bulkhead mount (Standard keystone footprint).
Channels- 12-position
Mode- Multimode 50/125 OM3
Color- Aqua/Black
Durability- <0.2dB change after 500 matings
Operating Temperature- -4 º C to +75 º C (+25 º F to +165 º F)
