24 Fibers MPO to 3xMPO and 1x LC Duplex Y Splitter Cable, Multimode OM3 Fiber, female to female, Type A polarity, 1m length

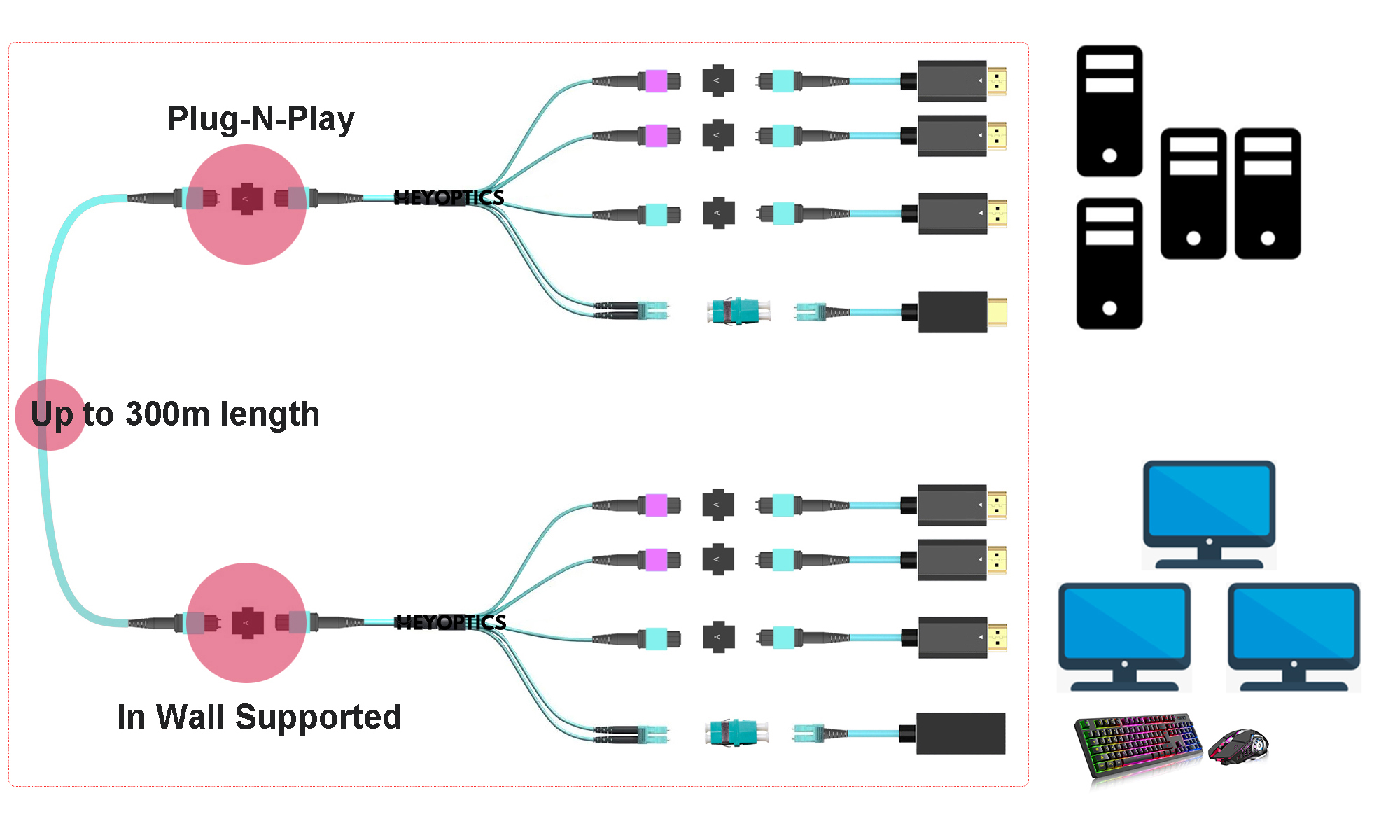

The 24-Fiber 1x4 way Y splitter cable is a solid choice for handling 8K HDMI 2.1, DisplayPort 1.4, USB 3.0, USB 3.1 and ethernet switches transmission over one 24 fibers MPO to MPO fiber trunk cable.
The MTP/MPO connector's revolutionary design was conceived with the user in mind. MPO stands for "multi-fiber push on." This cable comes in a "Type A" Straight-through polarity scheme.
Using OM3 fiber optics, you are able to transmit data over a 1Gbps link with a 50/125 micron glass fiber over a distance of up to 1000 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 300 meters at 850nm.
How to use the 4-way MPO Y splitter cable?
MPO connectors can be male (with pins) or female (with corresponding guiding holes).
Mating only male connectors with female connectors is primordial to avoid damages (male-on-male) and ensure continuity.
The role of the alignment pins is to ensure that fibers are facing each other perfectly.
Product Specifications
| Connector A | MPO-24 female (pinless) | Connector B | 3x MPO Female (pinless)+1x LC Duplex |
| Fiber Mode | 24 fibers OM3 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 100 m at 850 nm | 10G Ethernet Distance | 300 m at 850 nm |
| Multi Mode Class | OM3 | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.75 dB Max. (0.35 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
