With the introduction of the FC-6S, you can have the ultimate precision tool for single fiber cleaving. The FC-6S is available with a single fiber adapter for 250 to 900 microns coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
Built on a robust high-quality platform, the FC-6S is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. An optional fiber scrap collector can be installed with the FC-6S to help maintain loose scraps, resulting from the cleaving process. The scrap collector works to automatically grab and store the scrap fibers as the cleaver’s lid is raised, following a completed cleave.
Application: Telecommunication, to help maintain loose scraps, resulting from the cleaving process.
Features
- Provides approximately 36000 cleaving
- High precision cleaving, Only for FTTH cold connection
- 250 µm coated or 900 µm buffered fiber
- Single mode or multimode use
- Compact body and light weight
- Adjust the peeling length is 5~20mm
- Three in one fixture, suitable for: FTTH Optical Cable, pigtail, bare fiber
Specifications
Material: Tungsten Carbide
Cleaver: Aluminum
Cleave Angle: ≤0.5 degree
Blade Life: 36000 Fibers
Cleaver Blade: 16 Face
Applicable number of fiber cores: Single core (Ø0.25 & 0.9mm) ~ 12 core ribbon fiber
Applicable bare fiber diameter: 125 µm
Fiber cutting length: 9-16mm (Ø 0.25) / 10-16mm (Ø 0.25)
Suitable operating temperature: -40-80°C
Suitable storage temperature: -40-80°C
Dimension: 63(W) x 76(D) x 60(H) mm
Weight: 273g

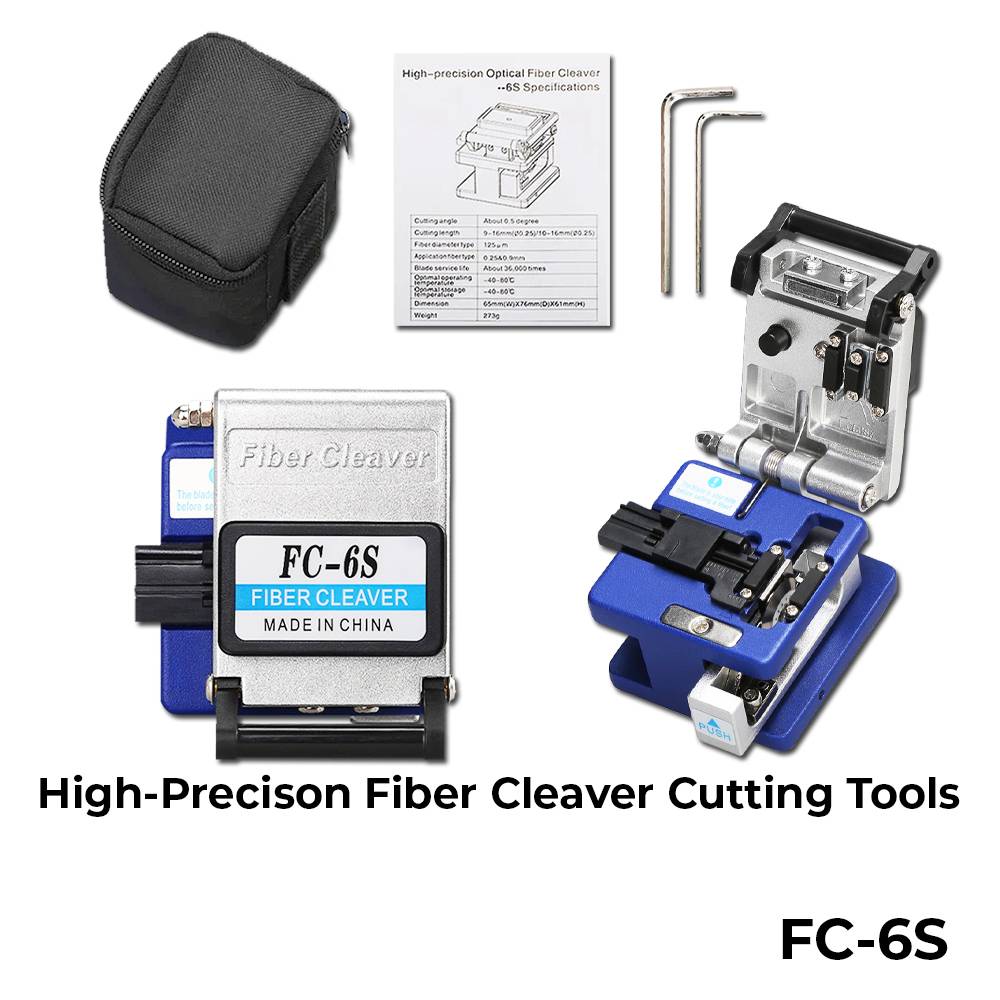

What in the box
1x Cutting knife, 1x Knife adjustment wrench, 1x Portable package, 1x Instruction book, 1x Packing box
