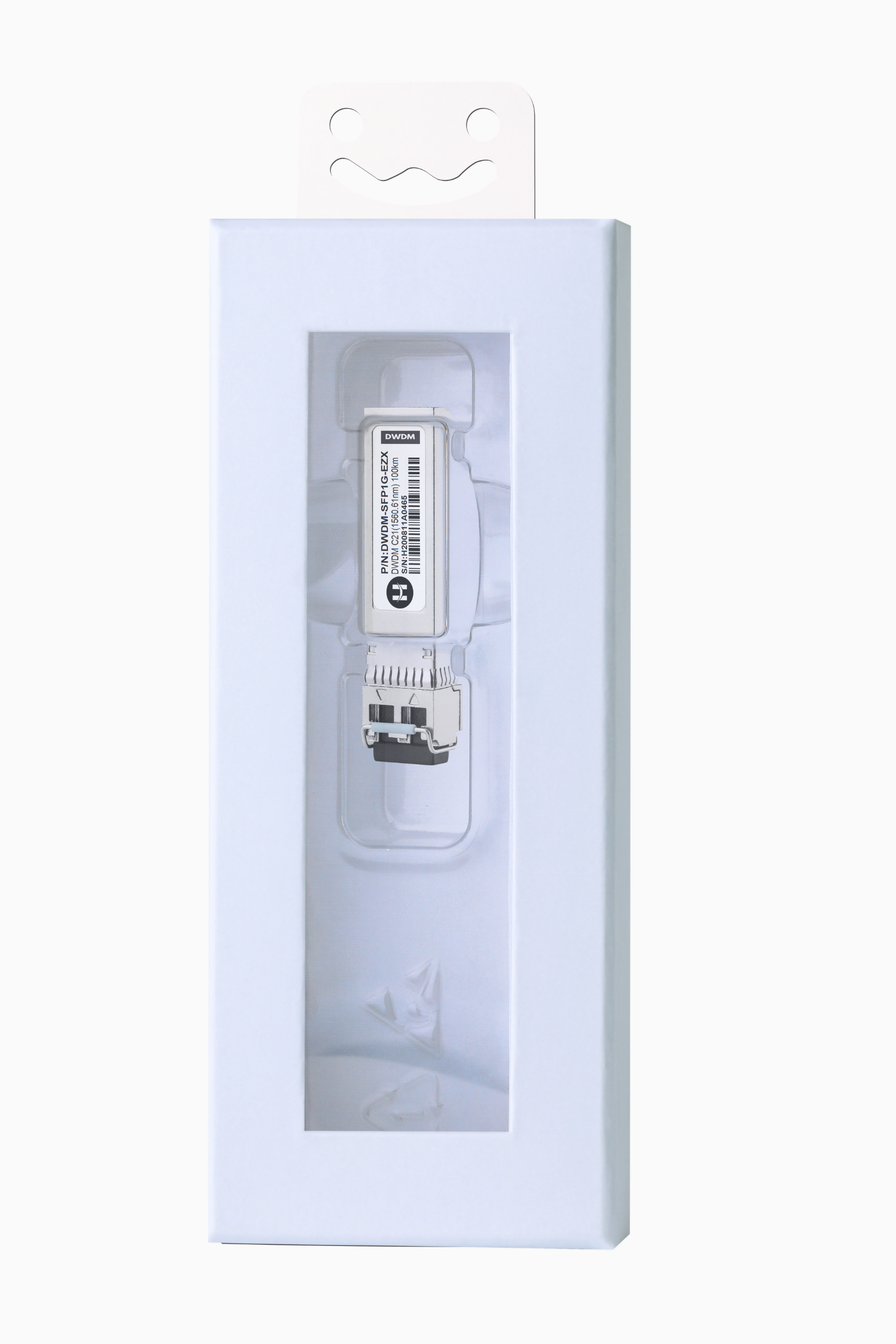

1000BASE-DWDM SFP Transceiver Module (SMF, C17 - C61, 100km, LC, DOM)
Features
DWDM for multiple applications over one duplex fiber
For 1000BASE-ZX+ Ethernet links
Supported Data Rates: 1.25 Gbit/s
Powerbudget of 32 dB for up to 100 km using an OS2 ITU-T G.652 fiber
Digital Diagnostic Monitoring (DDM)
WHY NOT USING 10G DWDM TRANSCEIVER WITH 1G?
1G & 10G DWDM WITH SAME TRANSCEIVER HARDWARE
Short Lead-Times - use 10G DWDM (40km/80km) from Stock for your 1G connections
Future-Proof - start with 1G and use the same Transceiver for 10G later
Cost effective - 80km 1G & 10G DWDM with almost same pricing
SPECIFICATION
| FORM FACTOR | SFP | POWERBUDGET (DB) | 32 dB |
| CONNECTOR / POLISH | LC-Duplex PC | TRANSMIT MIN/MAX | 0 dBm / 5 dBm |
| INTERFACE | DWDM | RECEIVER MIN/MAX | -32 dBm / -10 dBm (overload) |
| TYPE | DWDM ZX+ | WAVELENGTH RX (RANGE) | 1528 - 1566 nm |
| DISTANCE | 100 km | LASER | EML |
| TEMPERATURE RANGE | 0°C - 70°C | RECEIVER TYPE | PIN |
| BANDWIDTH | 1.25 Gbit/s | MODULATION | NRZ |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated | TRANSMIT AND DISPERSION PENALTY | 2 dB |
| POWER CONSUMPTION | 1.55 W | DISPERSION TOLERANCE | 2400 ps/nm |
| CDR | none | EXTINCTION RATIO | 8.2 dB |
| INBUILT FEC | No | PROTOCOLS | Gigabit Ethernet |
