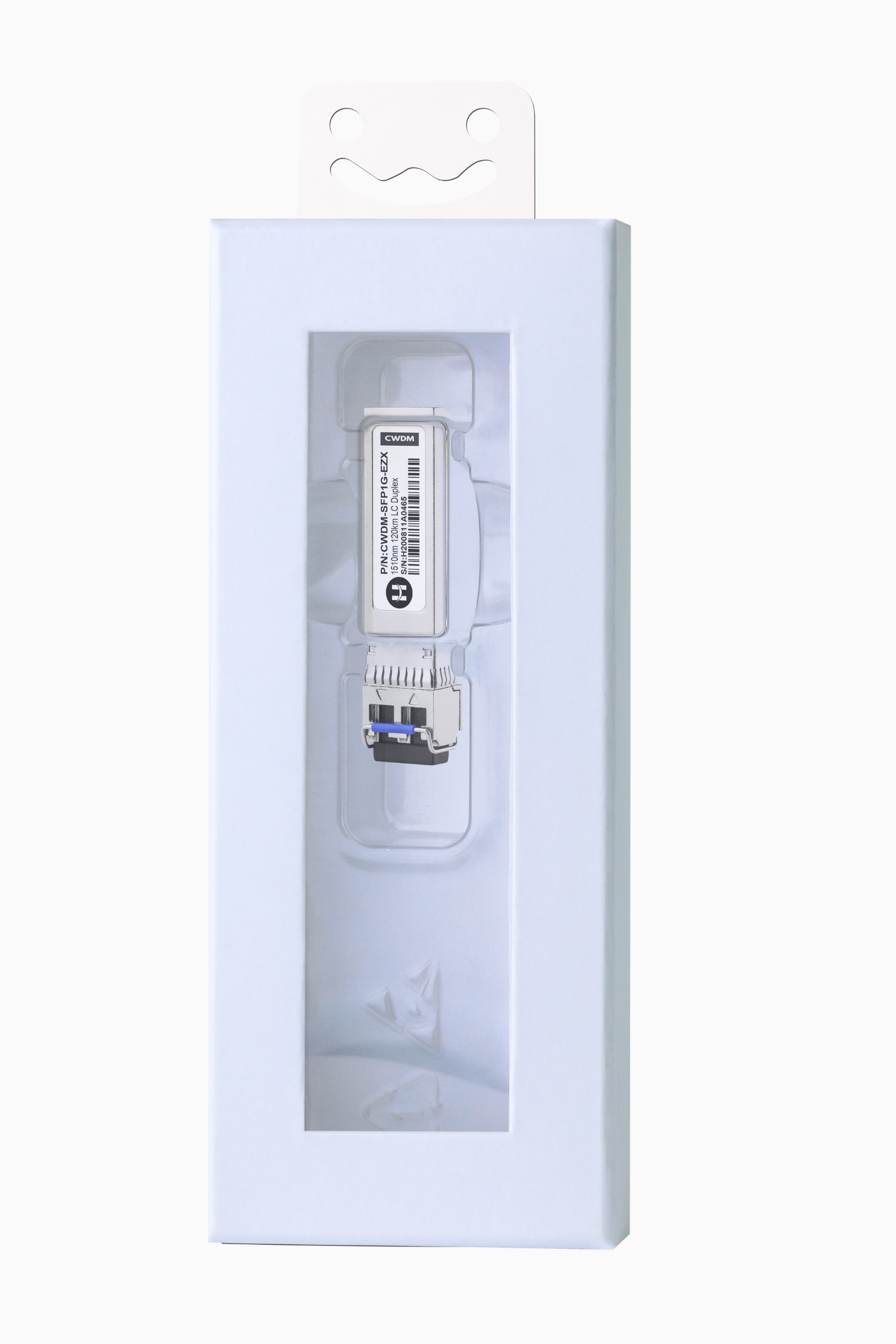

1000BASE-CWDM SFP Transceiver Module (SMF, 1270nm-1610nm, 120km, LC, DOM)
Features
CWDM for multiple applications over one duplex fiber
For 1000BASE-ZX+ Ethernet links
Supported Data Rates: 1.05 Gbit/s - 1.25 Gbit/s
Powerbudget of 36 dB for up to 120 km using an OS2 ITU-T G.652 fiber
Digital Diagnostic Monitoring (DDM)
Available 18x Wavelengths Options:
1270nm
1290nm
1310nm
1330nm
1350nm
1370nm
1390nm
1410nm
1430nm
1450nm
1470nm
1490nm
1510nm
1530nm
1550nm
1570nm
1590nm
1610nm
SPECIFICATIO
| Form Factor | SFP | Max Data Rate | 1000Mbps |
| Wavelength | 1270nm | Max Cable Distance | 120km |
| Connector | LC duplex | Optical Components | DFB CWDM |
| Media | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-30dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant |
