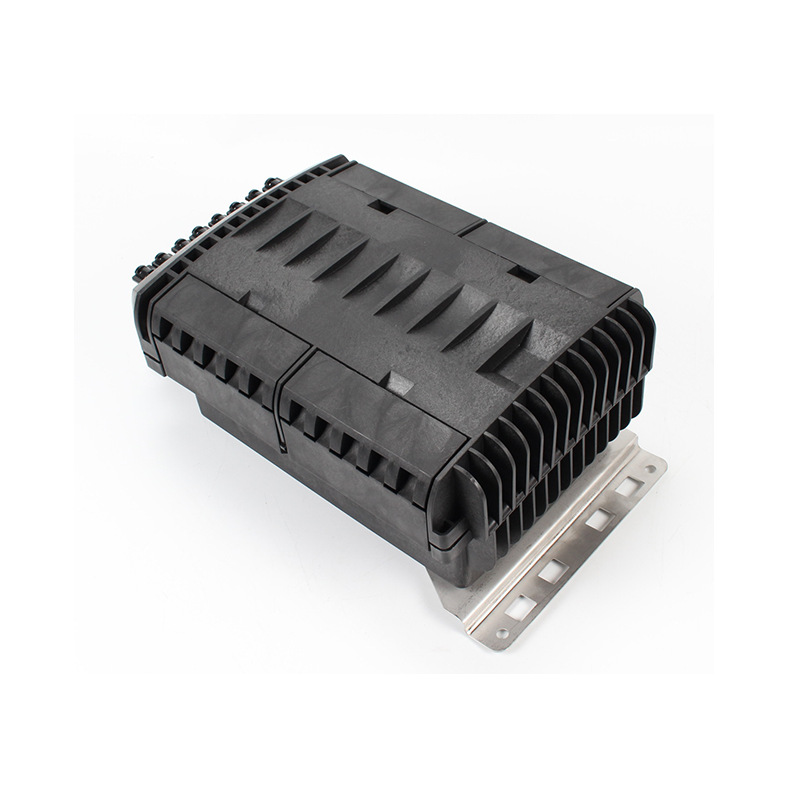

The equipment is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building. Can be used indoor or outdoor.
Features and Specification:
| FTB-144A-385*245*155mm | |||
| Max Splicing (Core) | 96 Cores | IP Rate | IP68 |
| Demension (W*H*D) | 385*245*155mm | Accessible Cable Diameter | Φ10-Φ18mm |
| Inlets/Outlets | 4/12; 4/24 |
Material | PP+ Fiberglass |
| PLC Splitter | N/A | Weight | 1.9kg |
| Relative humidity | ≤95%(+30℃) | Working temperature | -40℃~+65℃ |
| Insertion loss | ≤0.3dB | Atmospheric pressure | 62KPa~101KPa |
| Return loss | APC: ≥60 dB; UPC: ≥50 dB |
Life of insertion and extraction | >1000 times |
