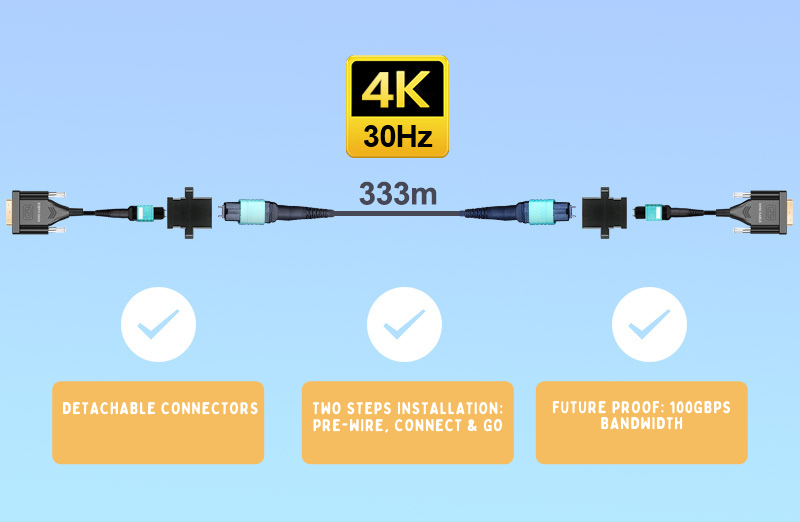

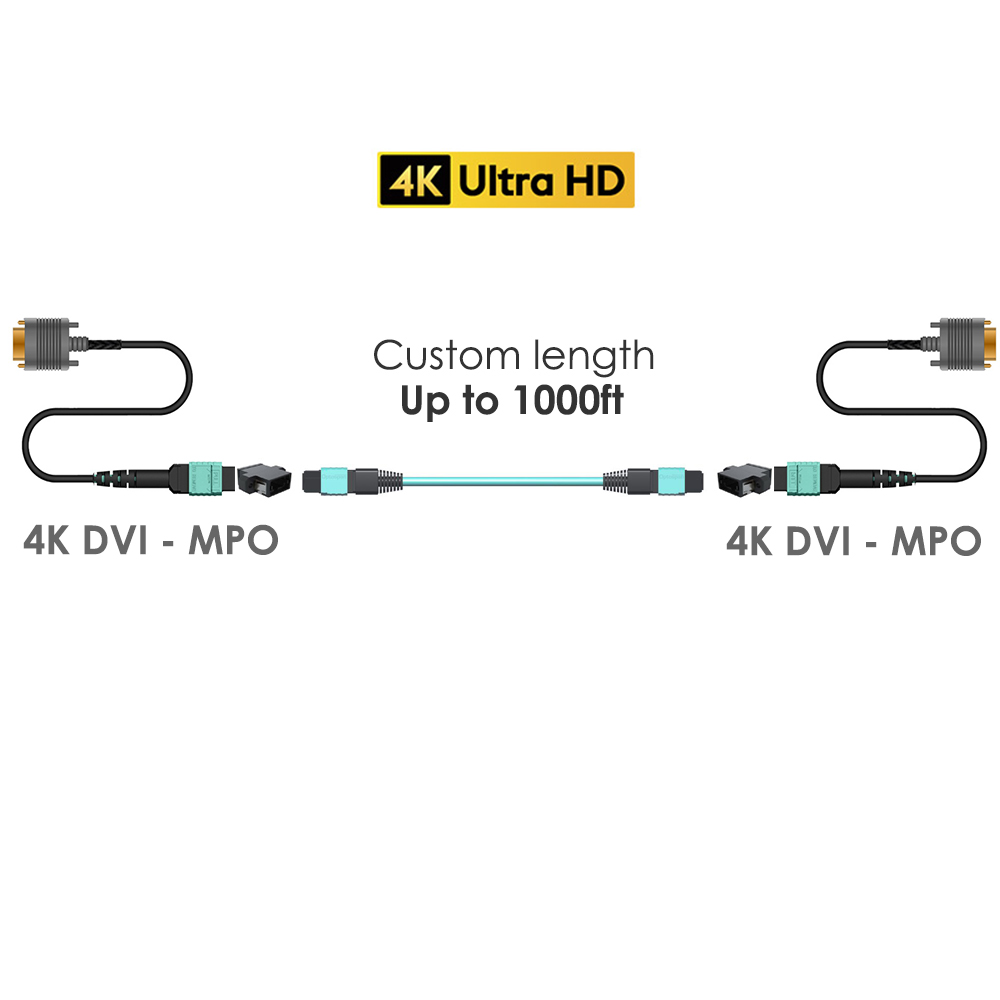

4K 30Hz DVI over Pure Fiber MPO Active Optical Cable up to 1000ft
4K 30Hz DVI over Pure Fiber MPO Active Optical Cable up to 1000ft is a pure fiber DVI active optical cable (AOC) with high performance, low power consumption and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, the DVI AOC over MPO cable can perfectly transmit HD image over 330 meters. Compared with the traditional copper wire, pure fiber DVI AOC cable is much longer, softer, more slim, with better signal quality and perfect EMI/EMC feature. Compared with other DVI optical fiber transmission solution, pure fiber DVI AOC cable is easy to use, and no external power supply needed.
Features
OD 3.0mm, long distance transmission, over 330 meters
Single channel DVI interface, support up to 10.2Gbps bandwidth
Program and store monitor’s EDID information inside of source connector
Thinner, lighter and softer than conventional copper cable
No radiation, NO EMI
Supports computer resolutions to 1080P and 4K2K(30P)
Request two side devices self-powered
Specifications
Cable Length: Customized, Up to 330m
Interface: DVI-D plug – DVI-D plug
Max Resolution: 1920*1080@60hz (1080P), 4K30
Power: No external power needed
Power Consumption: 250mW
Mechanical / Condition
Cable diameter: 3.0mm
Bend Radius (Dynamic/Static): 40mm/20mm
Tensile Strength (Long term/Short term): 100N/200N
Crush Resistance (Long term/Short term): 200N/400N
Operating / Storage Temp: 0 ~ 50°C/-20 ~ 70°C
Applications
Home Theater
High definition Video Meeting System
Medical Video System
High definition Video Surveillance System
Digital Signage and TV Wall
