Features

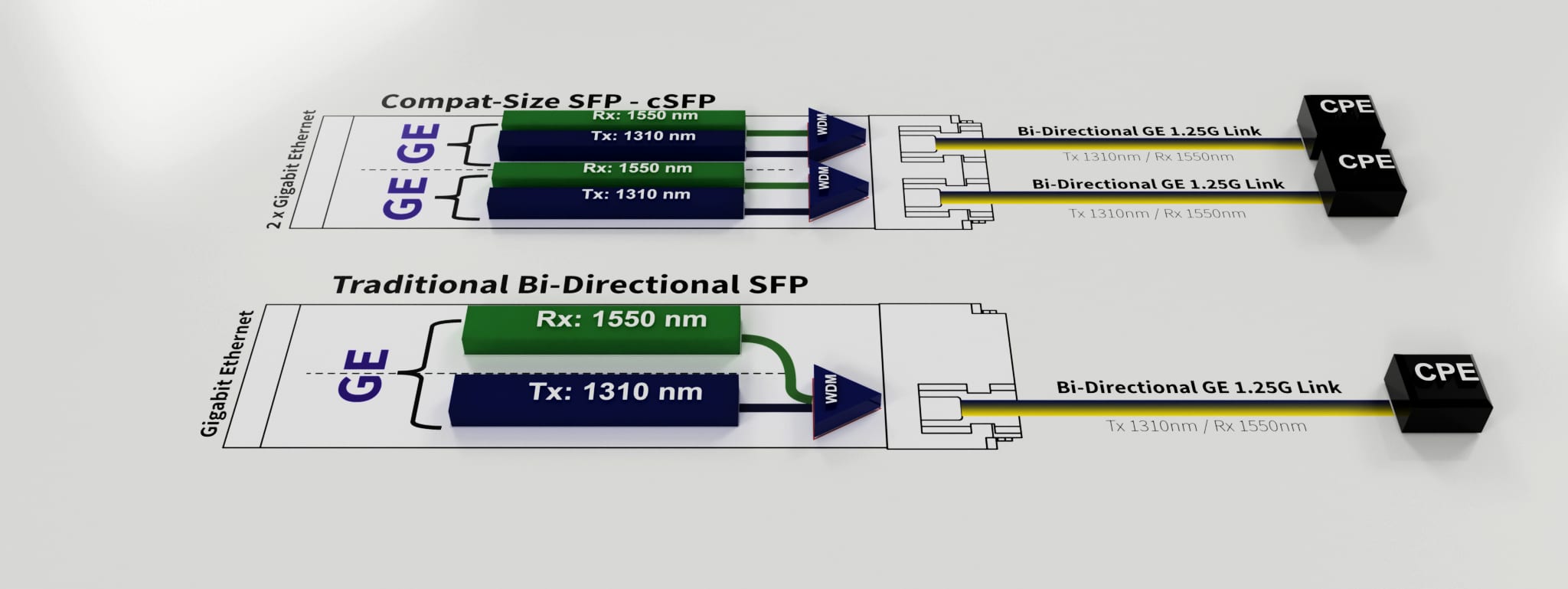

Universal CSFP Dual BiDi Transceiver
Double your devices port density - one transceiver two applications
For 1000BASE-EX Ethernet links
Supported Data Rates: 2x 125 Mbit/s - 2x 1.25 Gbit/s
Up to 40 km via Singlemode OS2
2x LC-Simplex Connector
Operating Temperature from -40°C to 85°C, Digital Diagnostic Monitoring (DDM)
SPECIFICATION
| FORM FACTOR | CSFP | INBUILT FEC | No |
| CONNECTOR / POLISH | 2x LC-Simplex UPC | POWERBUDGET (DB) | 19 dB |
| INTERFACE | Singlemode BiDi | TRANSMIT MIN/MAX | -5 dBm / 0 dBm |
| TYPE | 2x BiDi EX | RECEIVER MIN/MAX | -24 dBm / -3 dBm (overload) |
| DISTANCE | 40 km | WAVELENGTH TX (TYPICAL) | 2x 1490 nm |
| TEMPERATURE RANGE | -40°C - 85°C | WAVELENGTH TX (RANGE) | 1480 - 1550nm |
| LANE COUNT | 2x (Tx/Rx) | WAVELENGTH RX (TYPICAL) | 2x 13100 nm |
| BANDWIDTH | 2x 125 Mbit/s - 2x 1.25 Gbit/s | LASER | DFB |
| BANDWIDTH PER LANE | 125 Mbit/s - 1.25 Gbit/s | RECEIVER TYPE | PIN |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated | MODULATION | NRZ |
| POWER CONSUMPTION | 1.5 W | TRANSMIT AND DISPERSION PENALTY | -3 dB |
| CDR | none | EXTINCTION RATIO | 6 dB |
| SGMII | No | PROTOCOLS | 1G Fiber Channel,Gigabit Ethernet, Fast Ethernet |
