12F MTP/MPO Mulimode OM4 Fiber Trunk Cable Magenta (MPO/MTP Specifications)
HeyOptics produces factory pre-terminated MTP/MPO Fiber Patch Cable OM3 / OM4 and singlemode for the high-density fiber cable system.
Factory pre-terminated MTP/MPO fiber patch cables are mainly used as interconnect jumper cables to link MTP or MPO cassettes, panels, backbone MTP / MPO assemblies with active equipment, facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments.
Note: MTP fiber cable adopts US CONEC standard or elite MTP connectors, fully compliant with the MPO standards, which are terminated on both ends of 10G OM3 or OM4 mini fiber trunk cable.
Features:
Fiber patch cable with MTP/MPO connectors
Meets IEC Standard 61754-7
standard and elite MTP/MPO connectors available
Compact dimension of ruggedized mini trunk fiber cables for High-Density fiber cabling
LSZH, OFNP, OFNR cable jacket
Fully compliant with the TIA/EIA 604-5 Type MPO connectors

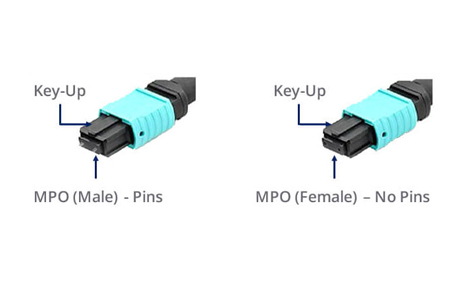

With PINs(male MTP) or without PINs(female MTP) connectors for option
Polarity A, B or C available
Factory terminated trunk cables & modularized cassettes, enclosures promise Rapid Deployment, saves installation and reconfiguration time
100% tested connectors, high-quality materials, long-term Reliability
Fully factory checked with test report attached
Applications:
10G/40G/100G networks
Array trunk cables
Array fiber to single fiber fan-outs and cassettes
High fiber density card edge access
Optical switching interframe connections
Structured cabling per TIA-568-C
Parallel Optics
SNAP 12
POP 4
QSFP
MPO/MTP Series Specifications:

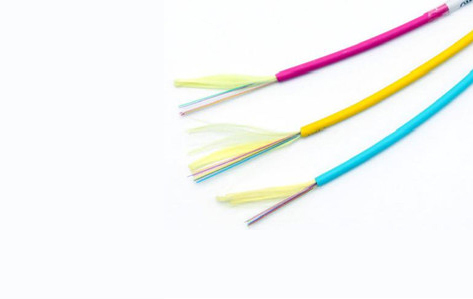

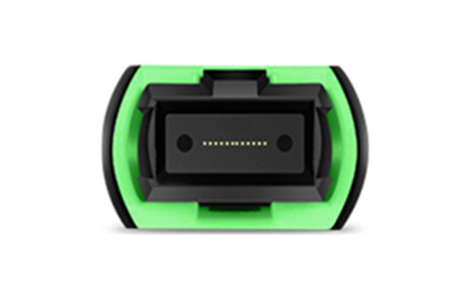

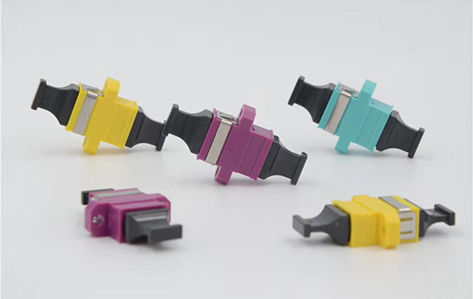

| MPO/MTP connectors | MPO/MTP Fiber Position | MPO/MTP Fiber Optic Cable | MPO/MTP Fiber Connection | MPO/MTP Adapters | |
 |
 |
 |
 |
 |
 |
| SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) OM1 & OM2: Beige connectors+black boot (Standard & Super low loss MPO) OM3: Aqua connectors+black boot (Standard & Super low loss MPO) OM4: Magenta connectors+black boot (Standard & Super low loss MPO) |

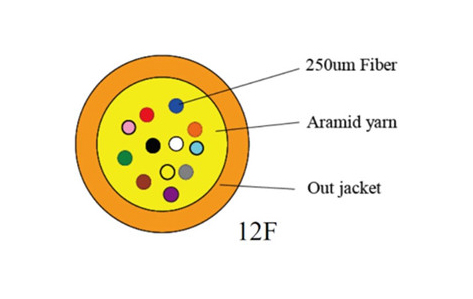

Structured cabling per TIA-568-C 10G Fiber Channel Compliant 40G and 100G IEEE 802.3 | Fiber Count:12 OD(mm):3.0±0.15 Minimum allowable Tensile Strength (N):Short-term: 180; Long-term: 90 Minimum Allowable Crush Load(N/100mm): Short-term: 500; Long-term: 150 Minimum Bending Radius(MM): Static (10D) Dynamic (20D) |

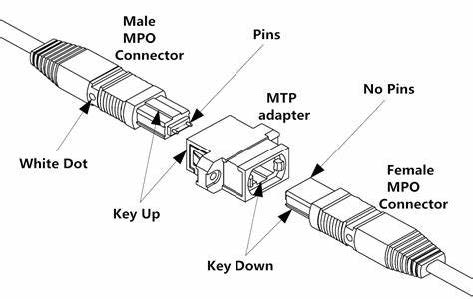

Female connector need to connect with male connector type |
Up to Down Up to Up |
|
12F MPO/MTP Optical Specifications
| 12F MPO/MTP Optical Specifications | ||
| Specification | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)(IEC 61300-3-34) | Standard loss：≤0.75dB(max), ≤0.50dB(Typical) | Standard loss：≤0.6dB(max), ≤0.50(Typical) |
| Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) | Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) | |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO/MTP End-Face 3D Interference Index
| MPO/MTP End-Face 3D Interference Index | ||||
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle-X | -0.2° | -0.2° | ||
| Angle | Angle-Y | APC | 7.85° | 8.15° |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
