12-Fiber Single MTP/MPO male to 2x MTP/MPO female Fiber Optic Y Splitter Conversion Cable, Multimode OM3 Fiber, female to male, Type A polarity
The 12-Fiber 1x2 way Y splitter cable is a solid choice for handling 100 Gigabit Ethernet applications with ease, all while saving you crucial space in the data center and telecommunications networking room.
The MTP/MPO connector's revolutionary design was conceived with the user in mind. This cable comes in a "Type A" Straight-through polarity scheme.
Using OM3 fiber optics, you are able to transmit data over a 1Gbps link with a 50/125 micron glass fiber over a distance of up to 1000 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 300 meters at 850nm.

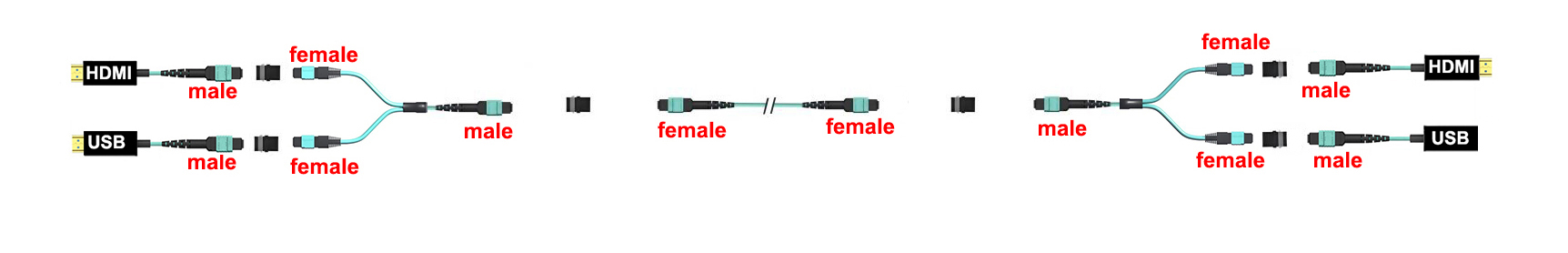

How to use the 2 way MPO Y splitter cable?
MPO connectors can be male (with pins) or female (with corresponding guiding holes).
Mating only male connectors with female connectors is primordial to avoid damages (male-on-male) and ensure continuity.
The role of the alignment pins is to ensure that fibers are facing each other perfectly.
Product Specifications
| Connector A | MPO-12 male (pinned) | Connector B | 2x MPO-6 Female (pinless) |
| Fiber Mode | 12 fibers OM3 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 100 m at 850 nm | 10G Ethernet Distance | 300 m at 850 nm |
| Multi Mode Class | OM3 | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.75 dB Max. (0.35 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
